Electromagnetic Dosing Pump

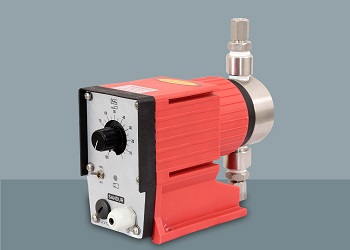

SANDUR DOSING PUMP(CC3-SERIES)

We are offering a high quality Sandur Dosing Pump to our respected clients. Our offered range Dosing pumps are used in various application in Dosing Antiscalent, Chlorin Dosing, Polyelectrolyte & Alum Dosing.


Sandur electromagnetic dosing/metering pumps are solenoid driven and are controlled electronically by a PCB. The only moving part in the pump is the solenoid armature, with a maximum movement of 1.25 mm. There are no rotating parts in the pump and hence, no lubrication is needed. The wear and tear is negligible and the pump is virtually maintenance free.


The diaphragm is made up of high quality nylon fabric reinforced EPDM with moulded steel core and has layer of PTFE on the liquid contact area.


Features

  High Quality Plastic pump body.

  Flow rate 0.156 LPH to 11.40 LPH.

  Maximum pressure of 20 Bar.

  25%, 50%,100% stroke frequency adjustment.

  0% to 100% Stroke frequency adjustment.

  10% to 100% stroke length adjustment.

  Can accept pulse & 4-20mA signals.

  0.156 LPH to 11.40 LPH Capacity.

  Maximum pressure of 20 Kgf/cm2.


SANDUR DOSING PUMP(B-SERIES)

We are offering a high quality Sandur Dosing Pump to our respected clients. Our offered range Dosing pumps are used in various application in Dosing Antiscalent, Chlorin Dosing, Polyelectrolyte & Alum Dosing.


Sandur electromagnetic dosing/metering pumps are solenoid driven and are controlled electronically by a PCB. The only moving part in the pump is the solenoid armature, with a maximum movement of 1.25 mm. There are no rotating parts in the pump and hence, no lubrication is needed. The wear and tear is negligible and the pump is virtually maintenance free.


Features

  High Quality Plastic pump body

  25%,50% and 100% Stroke frequency adjustment

  10% to 100% stroke length adjustment.

  Can accept pulse & 4-20mA signals.

  0.54 LPH to 11.40 LPH Capacity

  Maximum pressure of 20 Kgf/cm2.



ELECTROMECHANICAL / MOTORIZED DOSING PUMP

DOSTEC SERIES

  Aluminium casting pump body

  10% to 100% stroke length adjustment

  Option to connect VFD for providing 4-20 mA

  Flow rate 5.5 LPH to 1000 LPH

  Maximum pressure of 15 Bar

  Heavy duty & high precision
